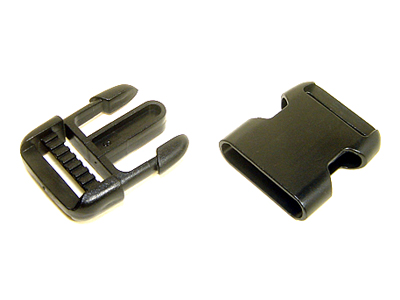

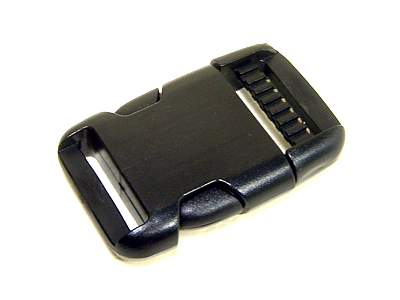

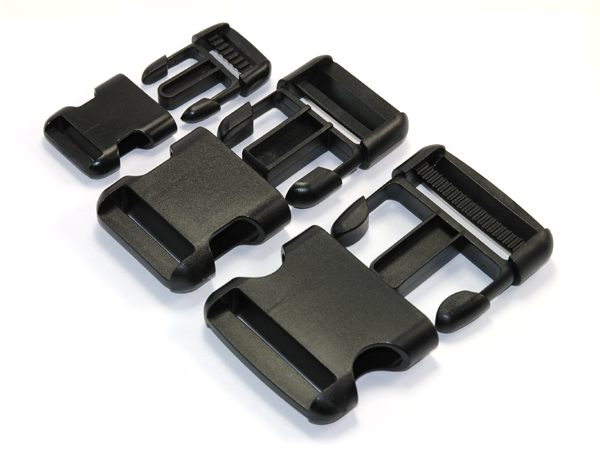

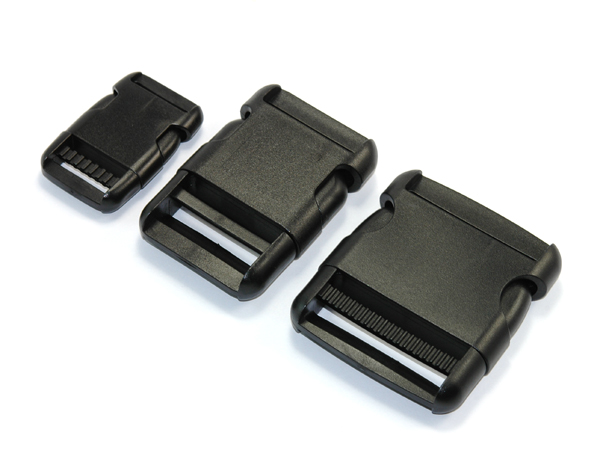

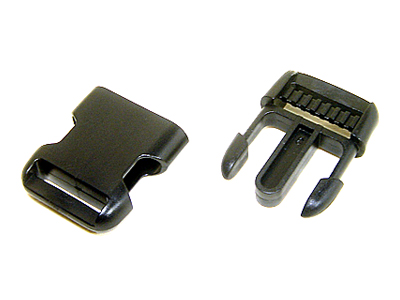

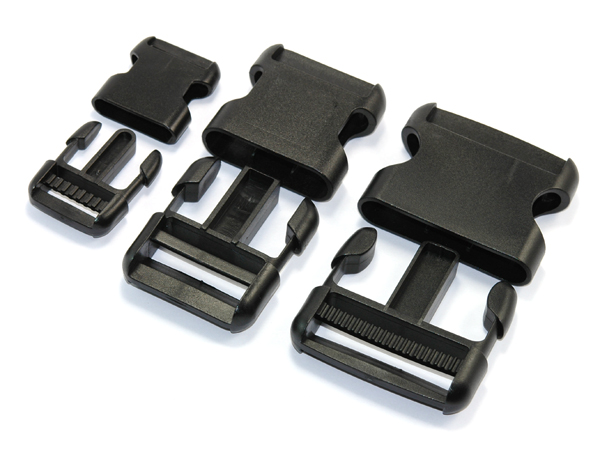

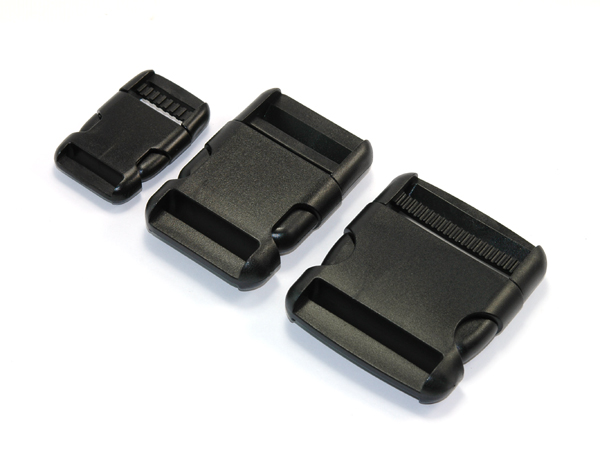

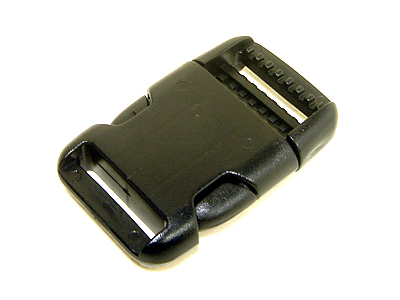

PH322 Side Release Buckle
|
|
Product Options
| Color: |
|
| Webbing Size: |
|
30%-80% Quantity Discount. FREE Shipping for Minimum $100 in the Continental US.
* Whole number only
|
One Side Adjustable.
1" Breaking Strength 99 lbs, 45 kgs.
1 1/2" Breaking Strength 106 lbs, 48 kgs.
2" Breaking Strength 198 lbs, 90 kgs.
Breaking Strength can be varied with respect to individual applications. These figures are offered as reference only and are not to be used as guaranteed performance figures. Products should be tested in their specific application.
Made of Polyoxymethylene (POM), also known as acetal, polyacetal, and polyformaldehyde, is an engineering thermoplastic used in precision parts that require high stiffness, low friction and excellent dimensional stability.
1" Dimension 2 1/4" x 1 3/8" x 7/16" (56 mm x 35 mm x 11 mm)
1 1/2" Dimension 3 1/8" x 2 1/16" x 23/32" (78 mm x 52 mm x 18 mm)
2" Dimension 3 1/8" x 2 5/8" x 5/8" (78 mm x 66 mm x 16 mm)
|
Size From 3/4 Inch to 2 Inch
(20 mm to 50 mm)
Enter Quantity for how many Feet you want
1 foot is 30.5 cm
|
Size From 3/8 Inch to 2 Inch
(10 mm to 50 mm)
Enter Quantity for how many Feet you want
1 foot is 30.5 cm
| |
|
|
