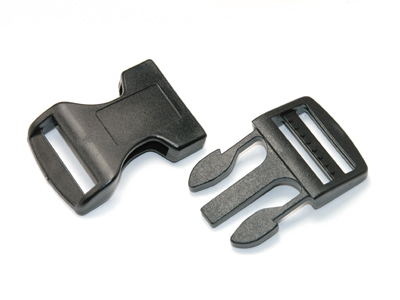

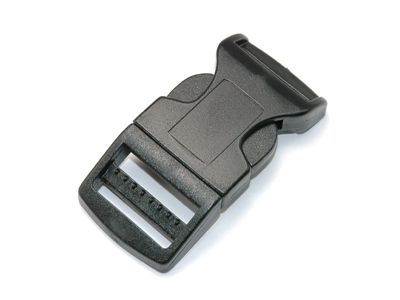

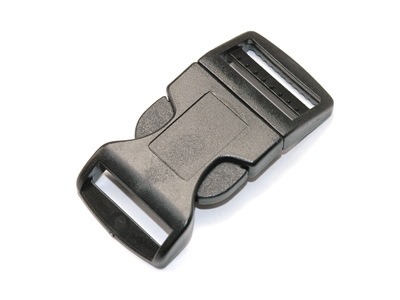

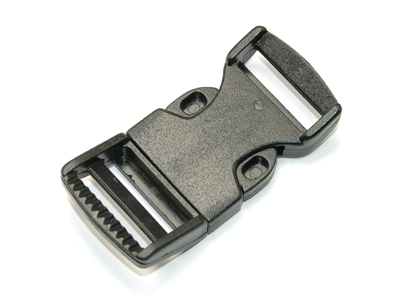

PH325 Curved Side Release Buckle

Price: As low as $0.14

Product Options

Color:
Webbing Size:

30%-80% Quantity Discount. FREE Shipping for Minimum $100 in the Continental US.

Quantity:

Email this page to a friend

1/2 Inch (12.9 mm) and 1 Inch (25 mm) Available in Stock in White. One Side Adjustable.

3/8" Breaking Strength 40 lbs, 18 kgs.
1/2" Breaking Strength 44 lbs, 20 kgs.
5/8" Breaking Strength 88 lbs, 40 kgs.
3/4" Breaking Strength 121 lbs, 55 kgs.
1" Breaking Strength 132 lbs, 60 kgs.

Breaking Strength can be varied with respect to individual applications. These figures are offered as reference only and are not to be used as guaranteed performance figures. Products should be tested in their specific application.

Made of Polyoxymethylene (POM), also known as acetal, polyacetal, and polyformaldehyde, is an engineering thermoplastic used in precision parts that require high stiffness, low friction and excellent dimensional stability.

3/8" Dimension 1 3/8" x 5/8" x 9/32" (34 mm x 15 mm x 7 mm)
1/2" Dimension 1 1/2" x 23/32" x 3/8" (38 mm x 18 mm x 9 mm)
5/8" Dimension 1 3/4" x 13/16" x 1/2" (45 mm x 21 mm x 12 mm)
3/4" Dimension 2 1/16" x 1" x 1/2" (53 mm x 25 mm x 13 mm)
1" Dimension 2 5/8" x 1 1/4" x 5/8" (67 mm x 31 mm x 15 mm)
